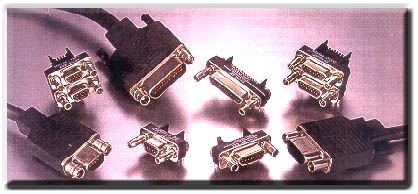

MDSM Shielded Micro D Sub
What to do when you're lost in space

When your PCB design calls for space savings and shielding, consider ITT Cannon's MDSM Shielded Micro D Subminiature connector.

MDSM takes up only minimal space on your PCB, and then goes to work excluding unwanted electromagnetic interference and noise. In fact, MDSM is the most economical, miniaturized shielded D Subminiature available on the market today.

Ready to evolve past decades old technology? MDSM provides up to 70dB of shielding attenuation while reducing EMI - and all in a tried-and-true D Subminiature-style connector. The cable side connectors come complete with an integral shield can, so you no longer need to purchase additional shielding accessories.

A High Reliability Alternative

ITT Cannon's MDSM offers several distinct advantages over low-end shielded connector solutions:

Rugged design.
More effective shielding.
Higher reliability (10,000 mating cycles).
Lower profile stacked MDSMs provide higher I/O packaging than any other shielded interconnect system.
Improved aesthetics due to slimmer, sleeker cable and appealing black/silver body.

You're designing products for the year 2000 and beyond! MDSM is ready to help you meet today's space and shielding challenges.

More features than ever before

ITT Cannon continues to add features to its MDSM product line. It's a connector that always has something more to offer. Among our latest product enhancements:

Palladium nickel plating on contacts to increase mating cycles to 10,000.

All insulators are safe for IR wave soldering.

Convenient slide latch retention allows immediate connector disengagement.

In addition to these recently-added features, MDSM also offers:

.050 pitch to save board space.
Crimp contacts for the cable result in lower applied cost.
Available in single high versions (9,15 and 25 contacts) and stacked versions on two connectors (18 and 30 contacts).
Two retention methods: thumb screws and quick lock slide latch. Plus a new low-profile quick latch is on the way.
Integral boardlocks allow for rapid connector installation and a secure grounding path to the board.
U.L. recognized (File #E8572).

SSA picked us

The ANSI committee on Serial Storage Architecture (SSA) selected ITT Cannon's MDSM as to "I/O of Choice" for all SSA external connector applications worldwide.

SSA is a powerful, new high performance serial interface specifically designed to connect disk drives, optical drives, CD ROMs, tape drives, printers, scanners and other peripherals to computers, workstations, servers and storage subsystems.

SSA is intended to correct limitations inherent in today's parallel connection and other proposed serial connections.

MDSM's features were ideal to help SSA meet its goals of increased reliability and performance.

Put us in our place

Hundreds of engineers have put MDSM connectors in place in I/O wire-to-board applications. Among the products that incorporate MDSM are:

Laptops
Palmtop and micro computers
Bar code readers
Medical and test equipment

We're the first name in
D Subs

We're proud to have invented the very first D Subminiature connector. Today, D Subs are the most widely used shielded I/O connectors in the world.

ITT Cannon's MDSM is the latest innovation in D Subminiature technology.

So, when you consider designing in our MDSMs, you have the assurance of knowing that your MDSM is a D Subminiature manufactured by the company that began it all.

Since we've been manufacturing D Subs for such a long while, we also know the importance of product availability. That's why our MDSMs are readily available off-the-shelf from Time Electronics.

For more information please E-mail Cathy Gill.
